Bahrain Luxury Interior — Complete Drawing Package

A multi-sheet interior drawing package produced for a luxury project in Bahrain, covering a master bathroom, a cigar lounge and a set of custom feature walls. The practice supplied design direction, measured dimensions and visual references; XIYÀTO produced the coordinated, editable documentation set.

Client
Luxury interior design practice
Sector
Luxury residential and hospitality interiors
Location
Bahrain
Period
2026
Engagement
Project
Discipline
Technical Production

Produced

Spaces documented
3
Wall elevations
4
Issued formats
DWG · DXF · PDF

Requirement

The design intent existed as renders, a measured hand sketch and written direction rather than as drawings. The package needed to resolve that material into a coordinated set where plan, elevation and ceiling geometry agreed with one another, remained fully editable by the practice, and made clear which dimensions were confirmed on site and which were derived from visual reference.

Scope

  • General arrangement and layout plans
  • Interior wall elevations
  • Reflected ceiling plan and lighting coordination
  • Herringbone flooring setting-out
  • Feature wall and joinery construction detail
  • Sanitary fixture and window coordination

Inputs

What we started from.

The engagement began from partial information — normal for this kind of work, and the reason the scope step matters.

  • 3D visual render of the intended master bathroom
  • Measured hand sketch with dimensioned layout and CAD notes
  • Interior design references and material direction
  • Supplied furniture layout for the cigar lounge
  • Written revision instruction across the drawing set

Approach

How the engagement ran.

  1. 01

    Input review

    Supplied material was assessed to separate confirmed dimensions from those implied by the render, and to identify what was missing before drafting.

  2. 02

    Scope and drawing list

    The sheet list, output formats and layer convention were fixed, and provisional dimensions were recorded as such.

  3. 03

    Drafting and coordination

    Plans, elevations, ceiling and flooring layouts were produced as native geometry and cross-checked so the set agreed across sheets.

  4. 04

    QA and issue

    The package was dimension-checked, reopened from the delivered files and issued as editable DWG and DXF with presentation PDFs.

Production

What was produced.

Three spaces were documented within one coordinated package.

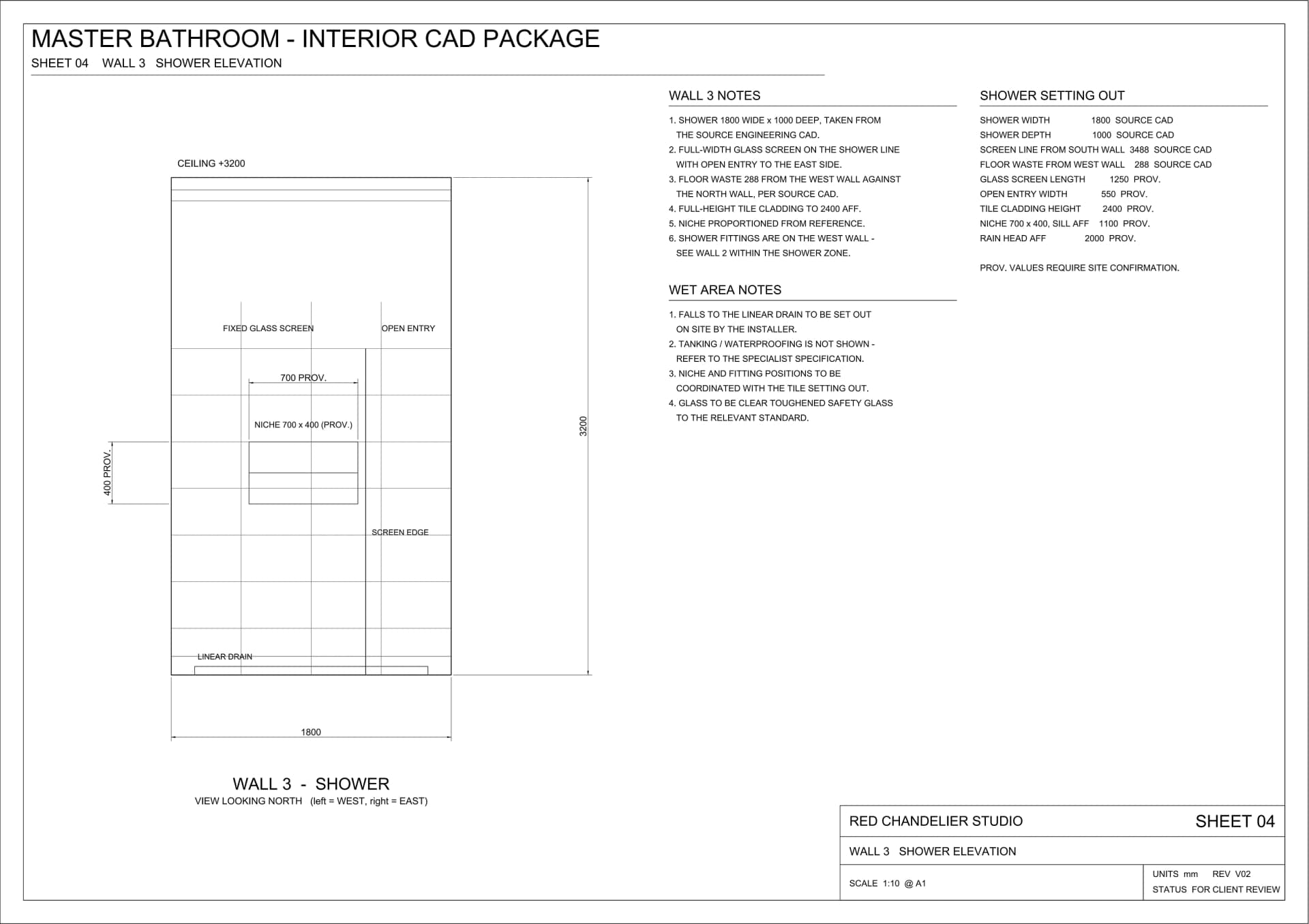

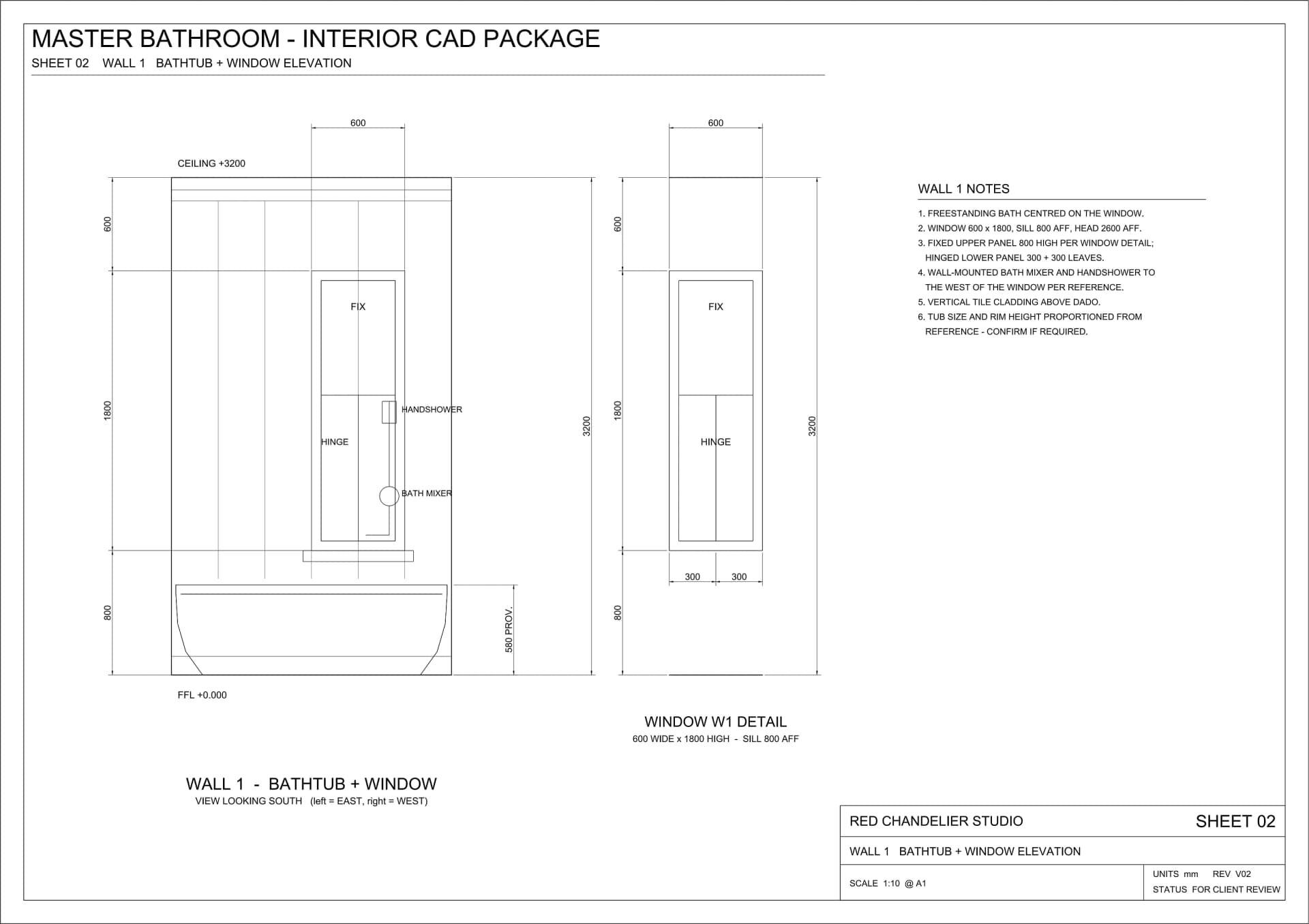

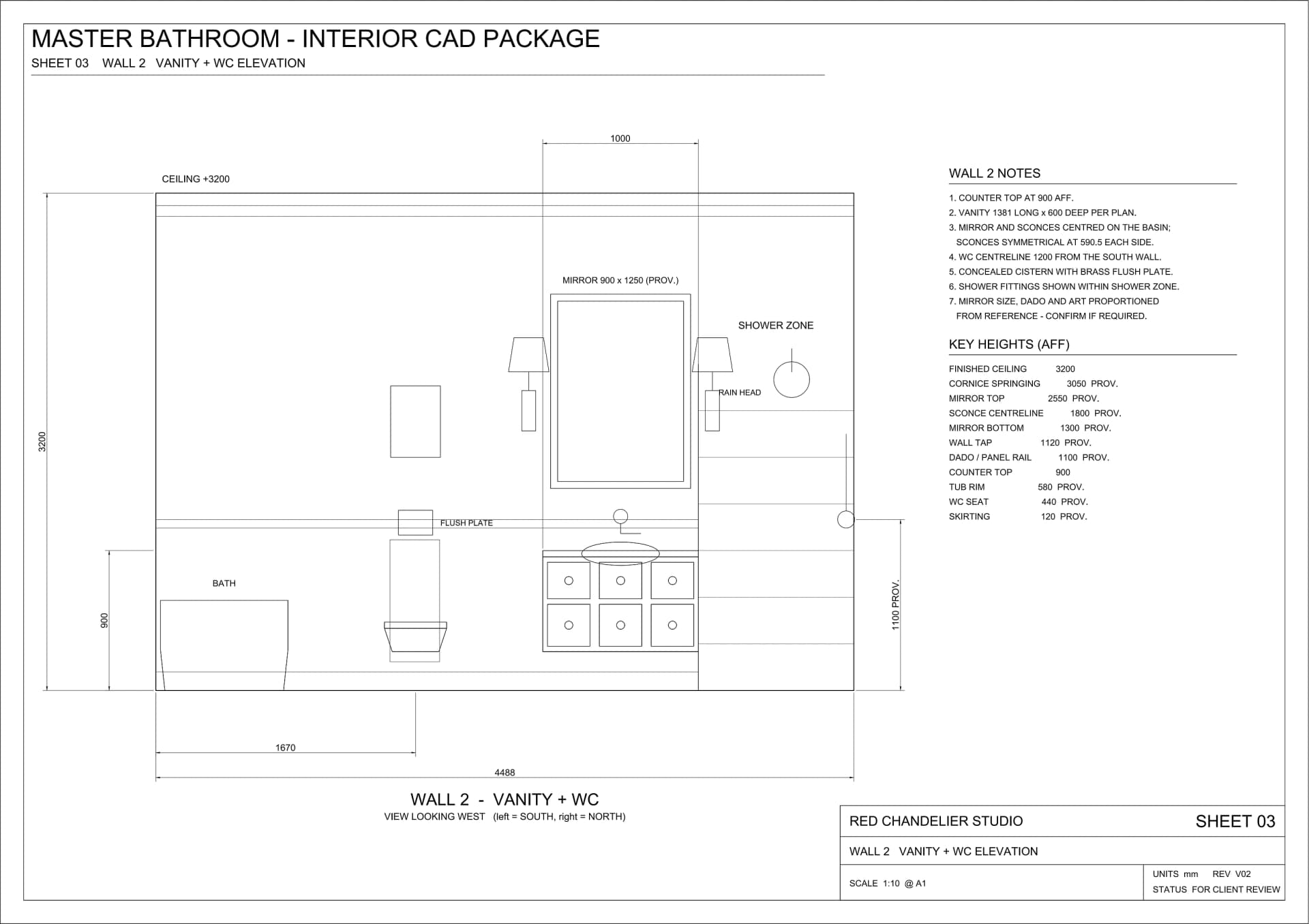

  • Master bathroom — general arrangement plus three wall elevations covering the bathtub and window wall, the vanity and WC wall, and the walk-in shower

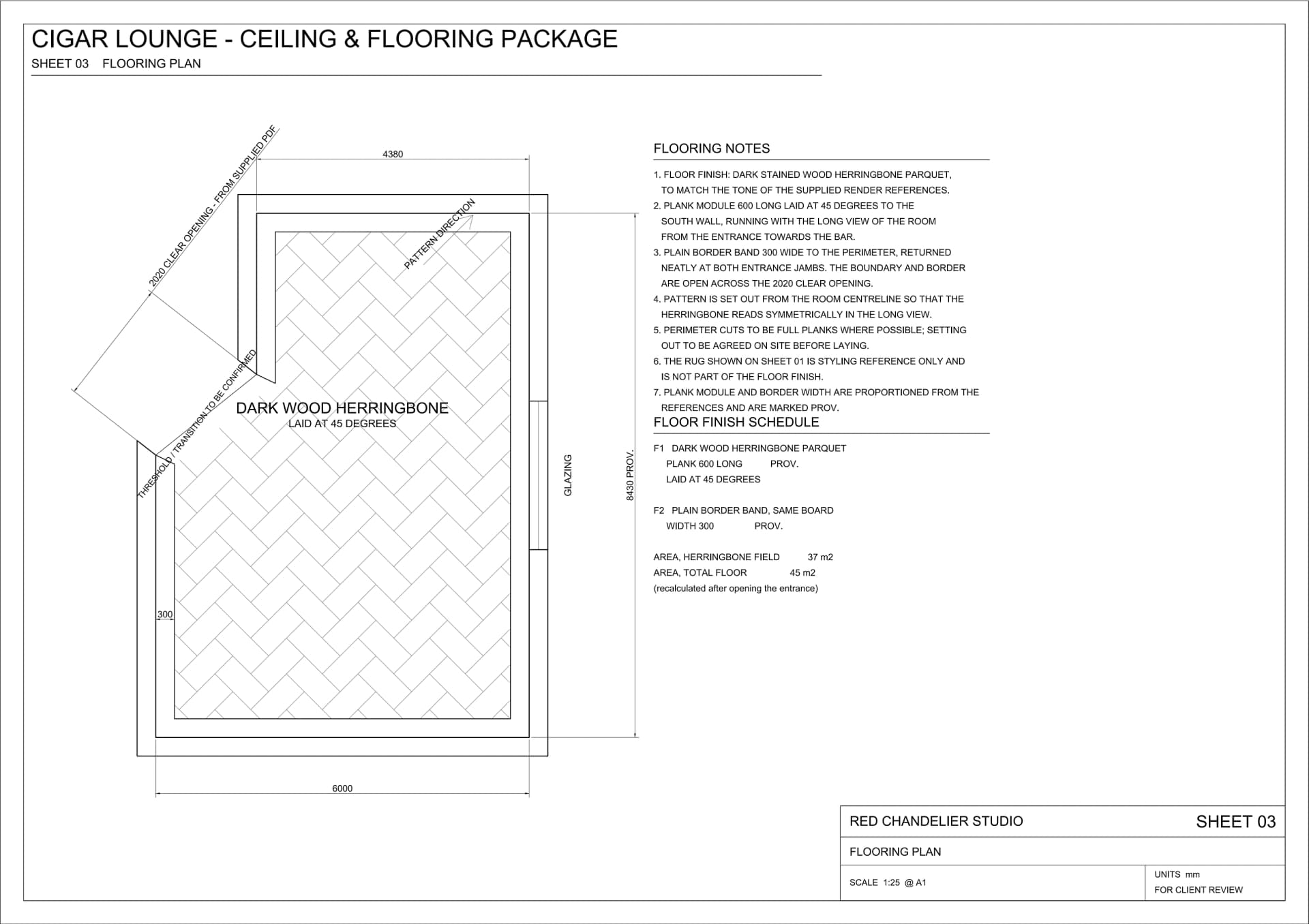

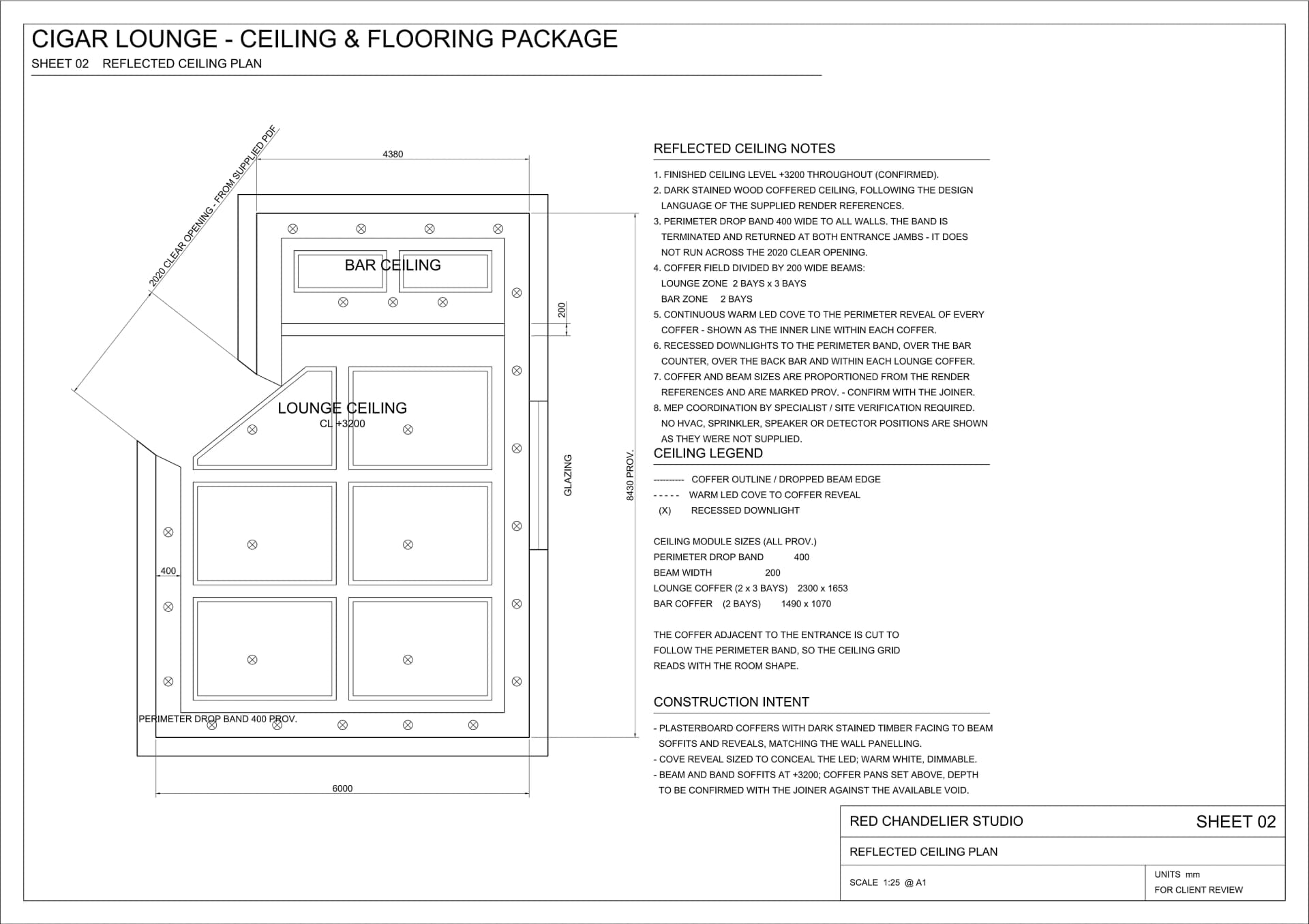

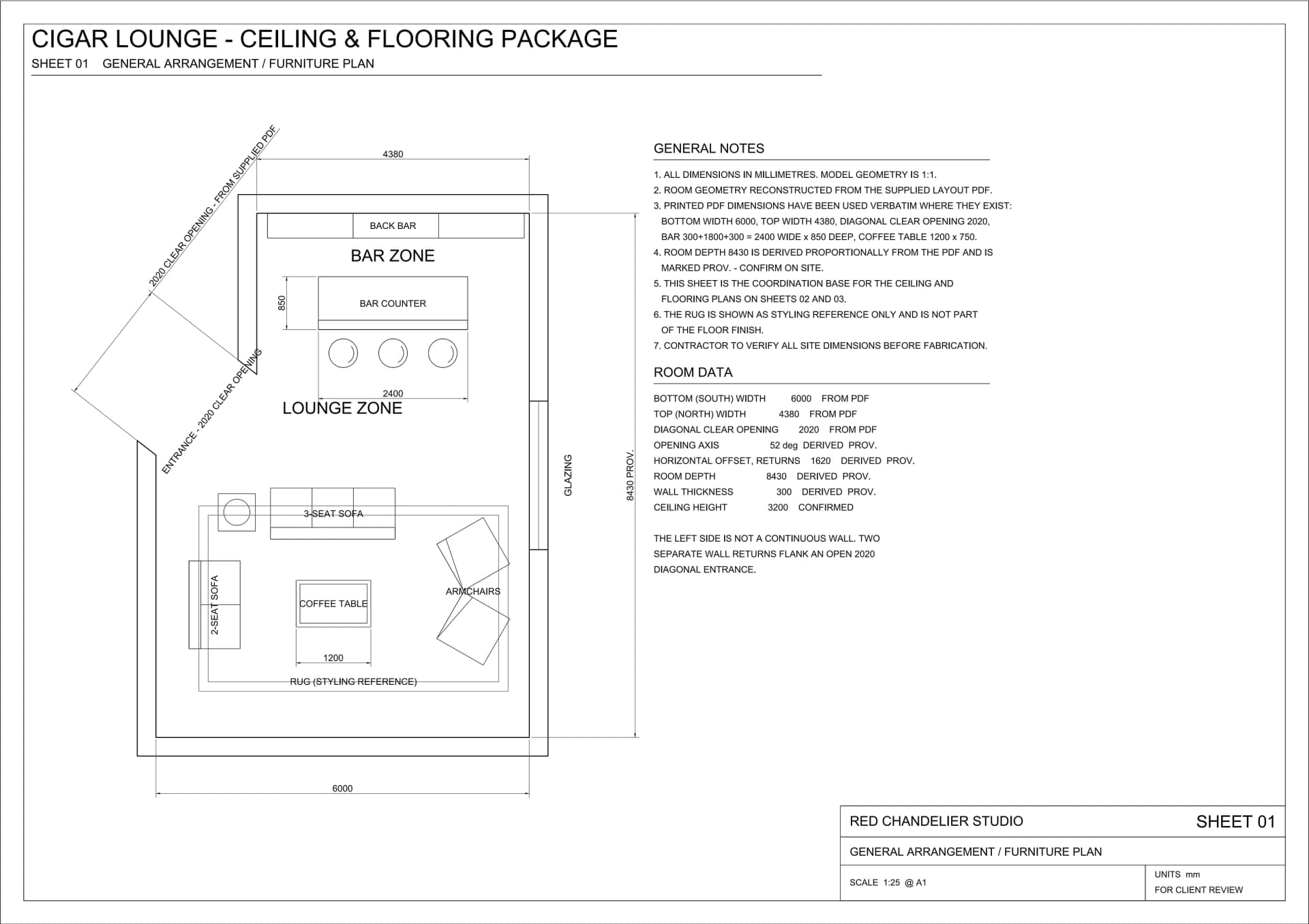

  • Cigar lounge — furniture layout, reflected ceiling plan with coffered ceiling and lighting arrangement, and an editable herringbone flooring pattern

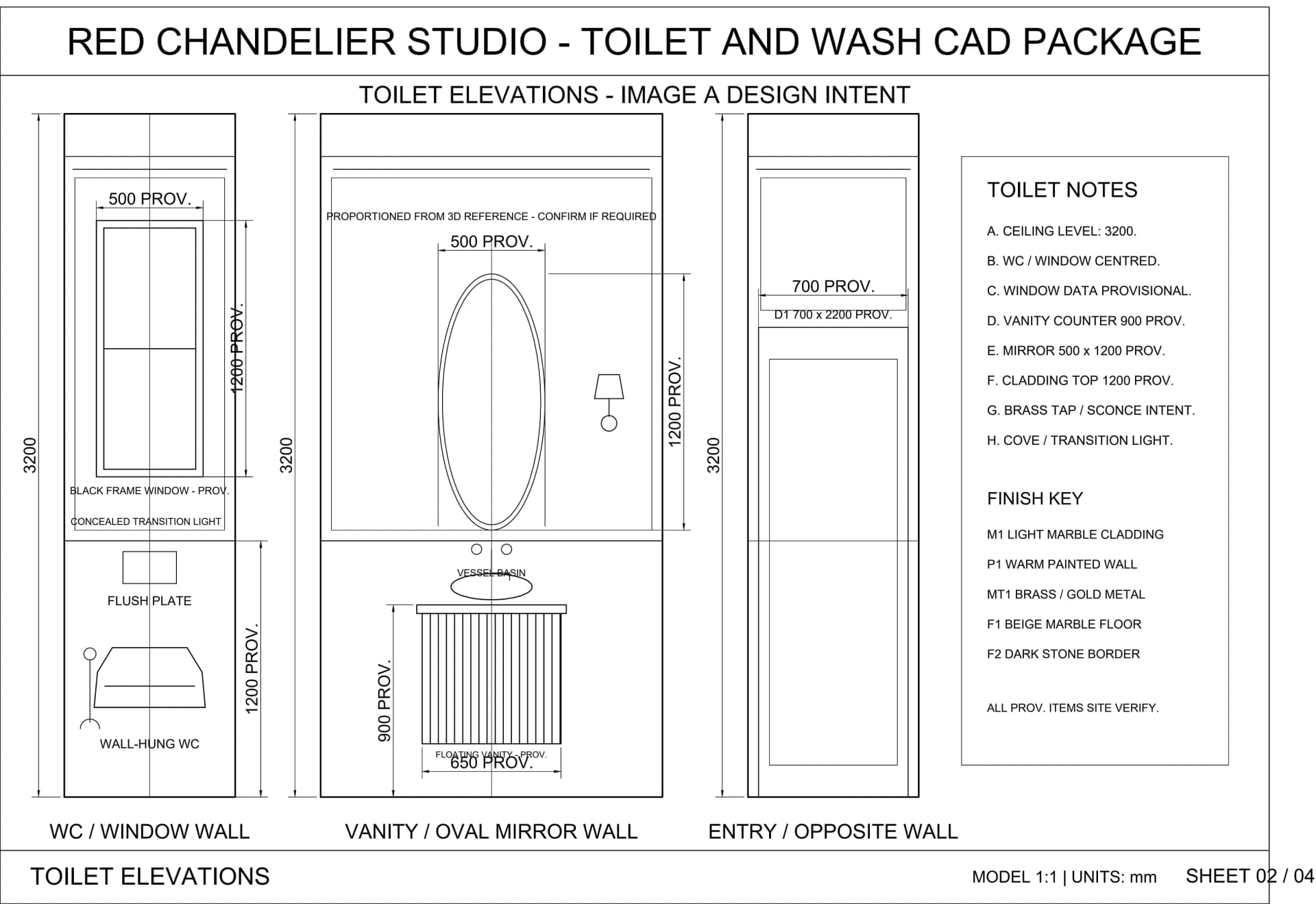

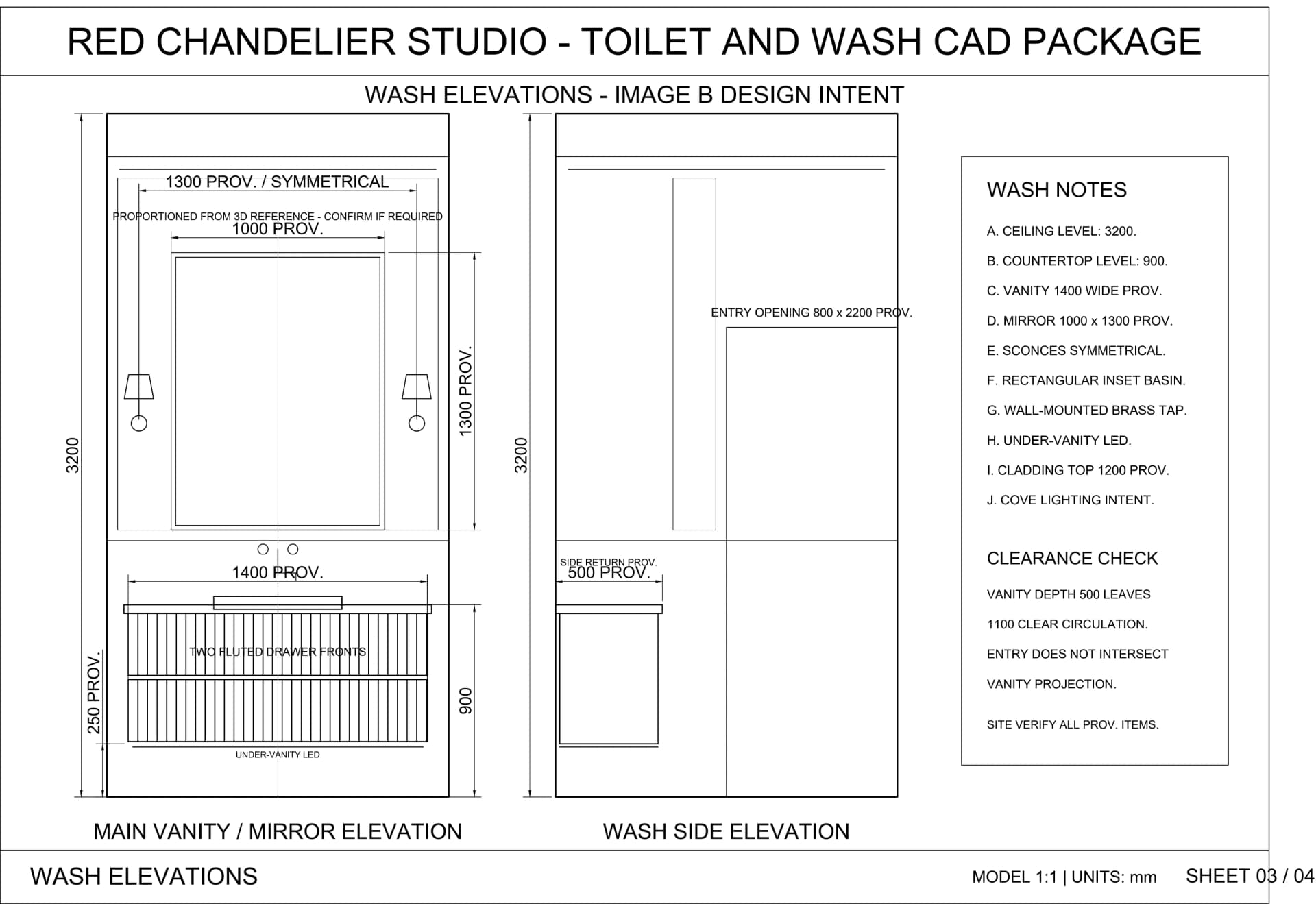

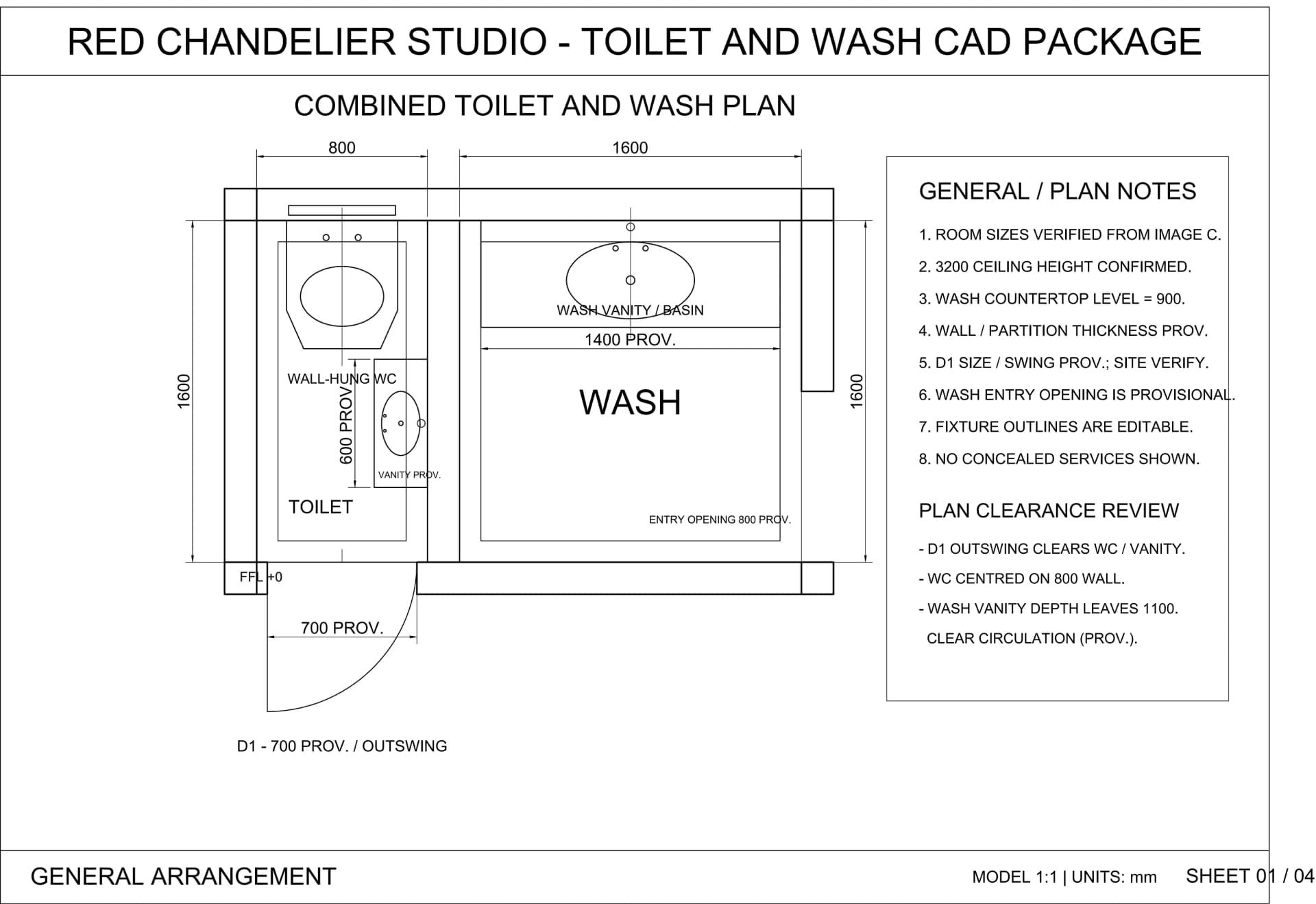

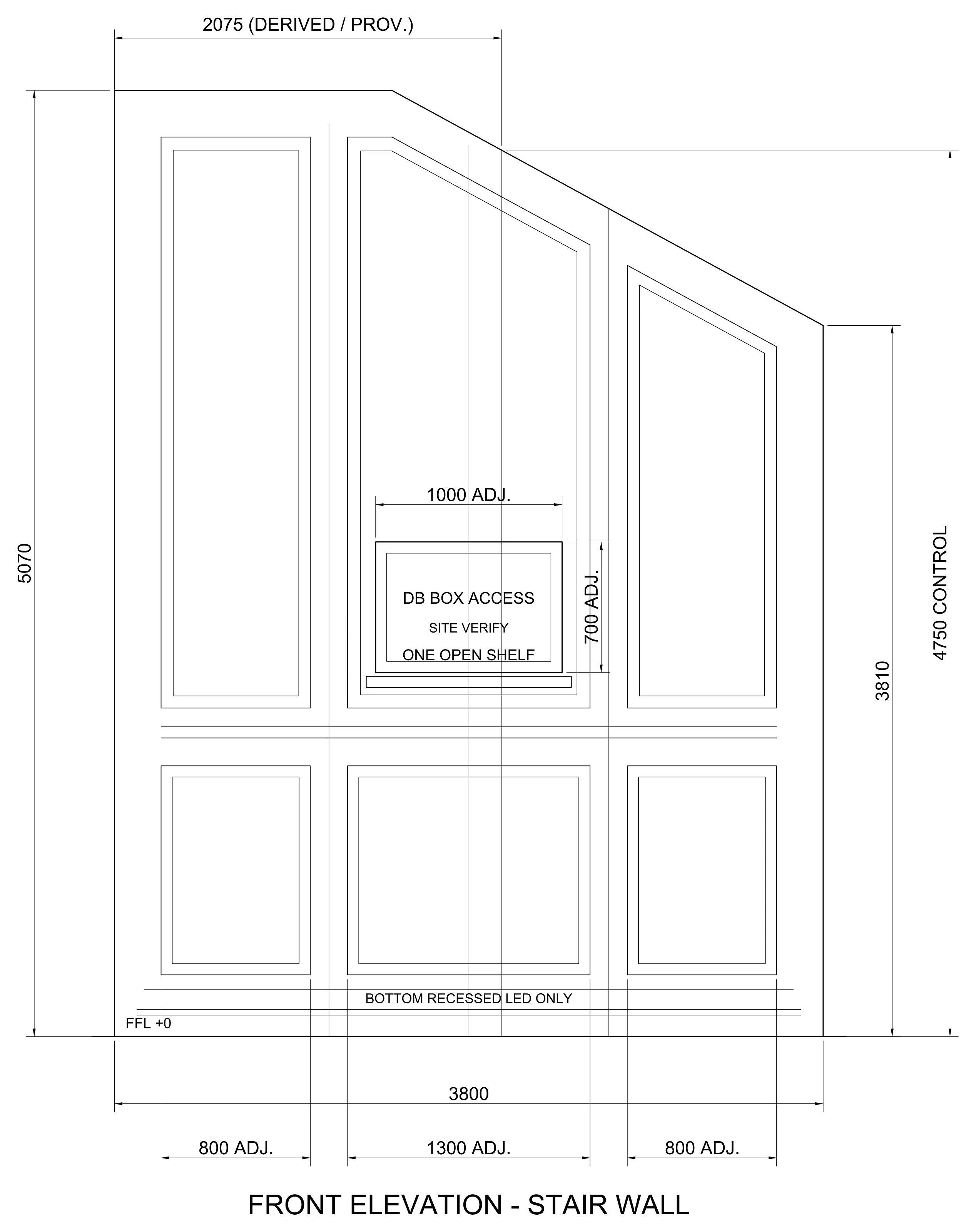

  • Feature walls — general arrangement with toilet and wash wall elevations, plus a stair feature wall joinery construction detail

Quality assurance

Checked before issue.

Checks applied before the package was issued.

  • Dimensional consistency between plan and elevation
  • Room geometry, orientation and alignment
  • Door, window and fixture relationships
  • Layer structure, naming and organisation
  • Editable native geometry — no traced raster or proxy content
  • Reopen check performed on the delivered DWG
  • Provisional dimensions flagged for practice review

Deliverables

Issued to the client.

  • Editable DWG drawing files
  • DXF exchange files
  • Presentation-ready PDF sheet set
  • Raster previews for review

Gallery

Selected output.

Select any image to view it full size.
